Forestry Equipment Seal Kits & Hydraulic Seals | Ruijueparts

Product Description AHC22108 is an aftermarket 90 mm hydraulic-cylinder bore seal kit for verified John Deere cylinder applications. It seals the piston-side/bore end, not the rod or gland end, making it suitable when internal bypass or piston-seal wear is identified. AH212097 and AH202290 are earlier reference numbers. Fitment spans forestry,...

Product Description RE20433 is an aftermarket 40 mm hydraulic cylinder rod seal kit for selected John Deere construction and forestry equipment. It services the rod and gland end only; published data lists a U-seal and buffer, with no piston seal. It is for rod-side leakage, not a complete cylinder overhaul....

Product Description AH149842 is an aftermarket 80 mm hydraulic-cylinder bore seal kit for selected John Deere equipment. It is an internal piston-side kit: published data lists a four-piece capped T-seal, with no rod seal or wiper. This matters when diagnosing leaks—external rod-end leakage needs a different kit. AH212091 is the...

Product Description AH149814 is a legacy 56 mm hydraulic cylinder rod seal kit reference for John Deere equipment. John Deere lists AHC13278 as its substitute, followed by AHC16683. For older machines, retain AH149814 in RFQs but verify the current replacement against the cylinder assembly. This rod/gland kit appears in boom,...

Product Description AH225136 is an aftermarket boom-cylinder seal kit for selected John Deere excavators and forestry swing machines. Published data lists an 85 mm rod × 120 mm bore, with both LH and RH boom-cylinder applications. An arm or bucket cylinder on the same machine uses a different kit. For...

Product Description AHC13278 is an aftermarket 56 mm hydraulic cylinder rod seal kit for John Deere equipment. It services the rod and gland end, not the piston-side bore. John Deere lists AHC16683 as the substitute; AH149814 is an earlier reference. Published data identifies boom and crowd cylinder applications on selected...

Product Description AHC13362 is an aftermarket 63 mm hydraulic cylinder rod seal kit for John Deere equipment. It seals the rod and gland end, not the piston-side bore. It is used on selected backhoe loaders, wheel loaders, crawler dozers, forestry machines, and tractors. Cross-reference data associates it with AH149815, including...

Product Description AH212101 is an aftermarket 100 mm hydraulic cylinder bore seal kit reference for selected John Deere equipment. Official John Deere data identifies it as a hydraulic cylinder kit with a 100 mm bore and lists AHC19515 as a substitute reference. The kit is intended for the piston and...

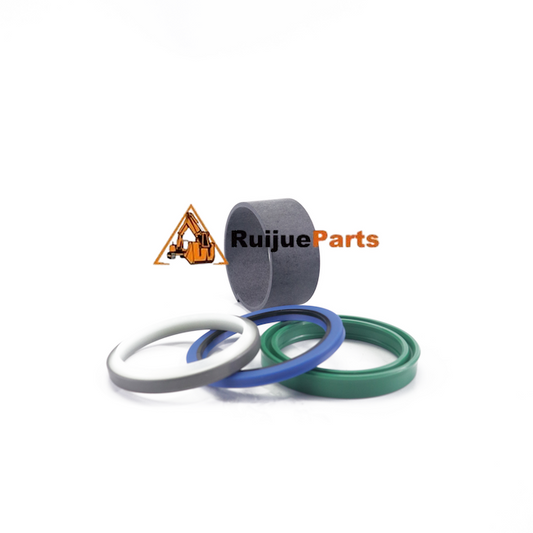

Product Description AH149815 is an aftermarket 63 mm hydraulic cylinder rod seal kit reference for selected John Deere equipment. It serves the rod and gland end of compatible cylinders rather than the piston-side bore. Published application tables place this reference on different cylinder locations, including backhoe crowd, bucket, and boom...

Product Description AH165931 is an aftermarket hydraulic cylinder bore seal kit reference for selected John Deere agricultural, forestry, and construction equipment. John Deere identifies the original reference as a hydraulic cylinder kit; replacement catalogs cross it to AHC16965, a 1.969 in. bore seal kit. The bore-side kit differs from a...
